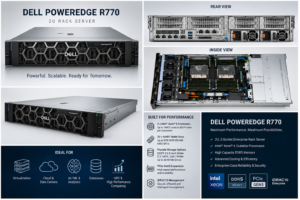

Dell PowerEdge R770 Server

Next-Generation Performance for Modern Data Centers

The Dell PowerEdge R770 Server is a high-performance 2U rack server built for organizations that need powerful computing, flexible storage, high memory capacity, and scalable expansion in a compact data-center platform.

Powered by Intel Xeon 6 processors, the Dell R770 supports demanding workloads including virtualization, cloud infrastructure, big data analytics, software-defined storage, AI inferencing, databases, and enterprise applications.

With its two-socket architecture, DDR5 memory support, PCIe Gen5 expansion, and multiple storage configurations, the PowerEdge R770 can be configured to match a wide range of business and data-center requirements.

Powerful Intel Xeon 6 Processing

The Dell PowerEdge R770 supports two Intel Xeon 6 processors, providing a strong foundation for compute-intensive enterprise applications and highly virtualized environments.

Depending on the selected processor configuration, the platform can support up to 144 E-cores or 86 P-cores per processor.

High-Capacity DDR5 Memory

The R770 provides 32 DDR5 DIMM slots and supports RDIMM memory configurations. Dell lists configurations up to 8TB of RAM, making the platform suitable for memory-intensive virtualization, databases, analytics, and other demanding workloads.

Flexible Storage Options

Storage flexibility is one of the major strengths of the PowerEdge R770.

Depending on the chassis and configuration, the server can support combinations of:

• SAS drives
• SATA drives
• NVMe SSDs
• EDSFF E3.S NVMe drives
• Universal drive configurations
• Hardware RAID configurations
• Dell PERC storage controllers

Dell documentation lists configurations supporting up to 40 EDSFF E3.S drives in certain configurations, while other chassis options support up to 24 x 2.5-inch drives.

PCIe Gen5 Expansion

The PowerEdge R770 provides extensive PCIe Gen5 expansion capabilities for networking, storage controllers, accelerators, and other compatible PCIe devices.

Depending on the configuration, the platform supports multiple PCIe Gen5 slots and OCP 3.0 networking options.

High-Speed Networking

The R770 supports a range of OCP NIC 3.0 networking options, including:

• 1GbE
• 10GbE
• 25GbE
• 100GbE

This makes the server suitable for high-throughput virtualization clusters, private cloud environments, enterprise networks, storage networks, and data-intensive applications.

Designed for Virtualization and Cloud

The Dell PowerEdge R770 is designed for workloads such as:

• Server virtualization
• Private cloud infrastructure
• Hyper-converged infrastructure
• Big data analytics
• Enterprise databases
• Software-defined storage
• AI inferencing
• High-performance computing
• Business applications
• Data-center workloads

Dell lists support for operating environments including VMware ESXi, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and Ubuntu Server LTS.

Advanced Dell Server Management

The PowerEdge R770 supports Integrated Dell Remote Access Controller 10 (iDRAC10) for remote monitoring and server management.

This can help administrators monitor server health, configure systems, manage firmware, and troubleshoot infrastructure remotely.

Why Choose Dell PowerEdge R770?

Choose the Dell PowerEdge R770 when your organization requires:

• High-performance dual-socket computing
• Large DDR5 memory capacity
• Flexible NVMe/SAS/SATA storage
• PCIe Gen5 expansion
• High-speed networking
• Virtualization and cloud capabilities
• Enterprise database performance
• AI inferencing capabilities
• Scalable data-center infrastructure
• Advanced remote server management

Configure Your

The right R770 configuration depends on your workload, required CPU performance, RAM capacity, storage requirements, RAID configuration, networking, and expansion needs.
